POWDER
SAMPLER
Introducing the Powder Sampler
OPT
MP

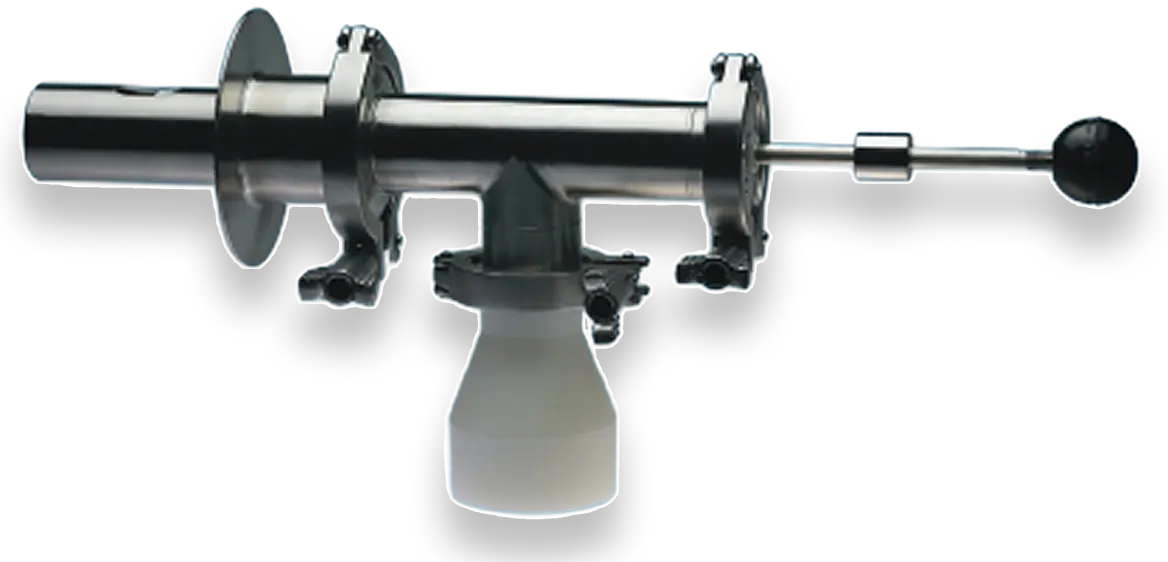

Built for Safety. Perfect for Powders & Granules.
- MP-Series has manual handle for easy operation
- It can be mounted on hopper wall
- 38mm Diameter plug
Applications
01
- For process sampling of Powders & granules in nonpressure applications.
- Provides reliable and efficient sampling solutions across industries
- Operates with robust hardware and user-friendly software
- Supports precise multi-point sampling and real-time data processing
- Applicable in manufacturing, chemical, pharmaceutical, food, and water testing
- Ensures efficiency, accuracy, reduced manual intervention, and adaptability
- Delivers consistent performance, reliable results, and future scalability

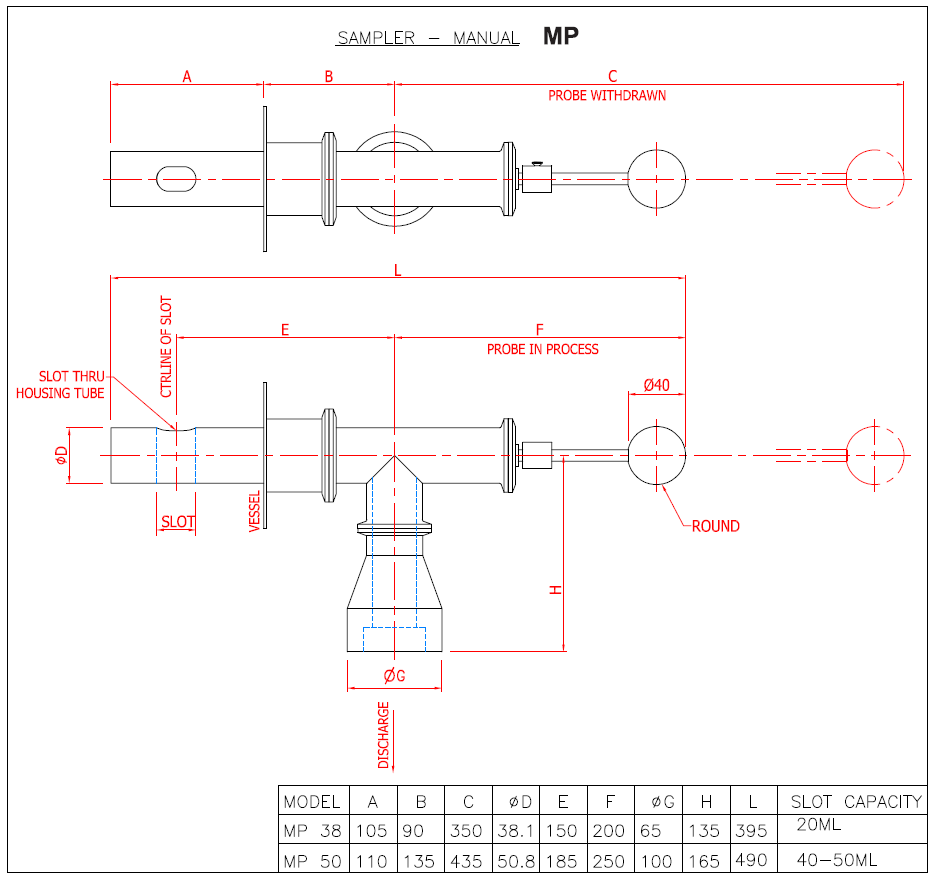

Sampler Manual
02
Animation
03
Applications
01
- For process sampling of Powders & granules in nonpressure applications
- Pressure application option available
- Sample storage option available
- Designed for easy installation and low maintenance
- Provides accurate and representative samples for quality control
- Available in various sizes and configurations to suit different processes
- Built with durable materials for long service life

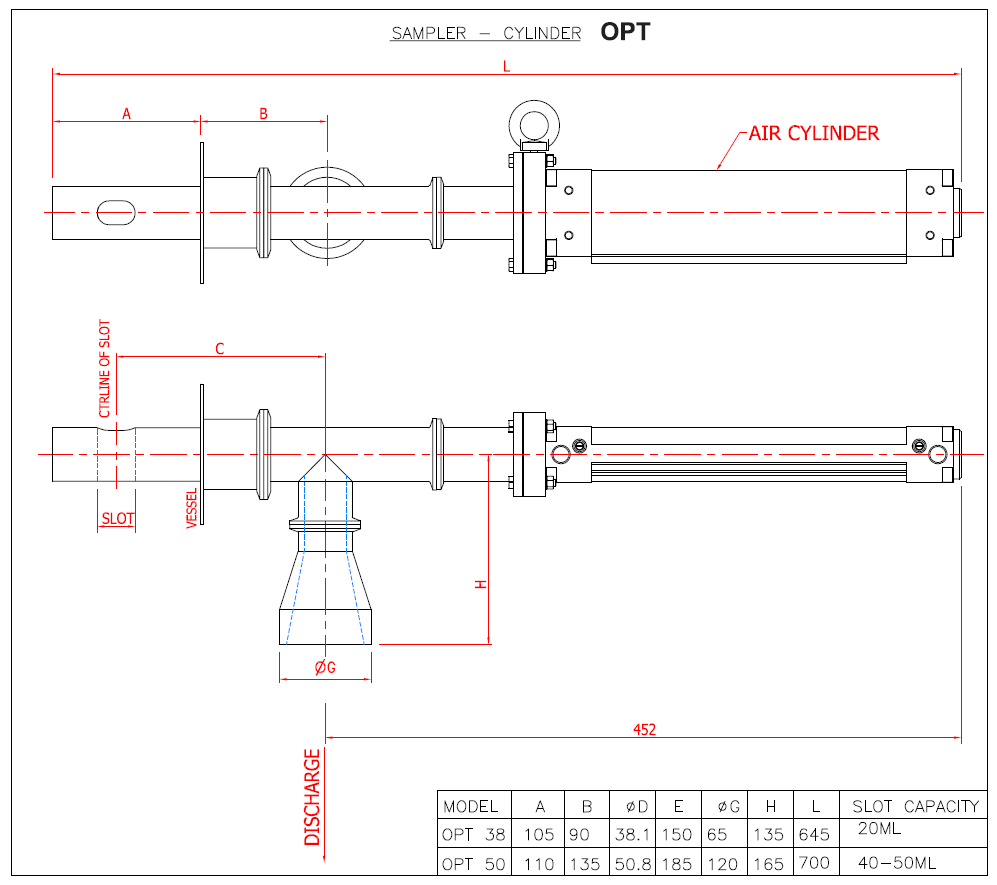

SAMPLER CYLINDER
02
Animation
03

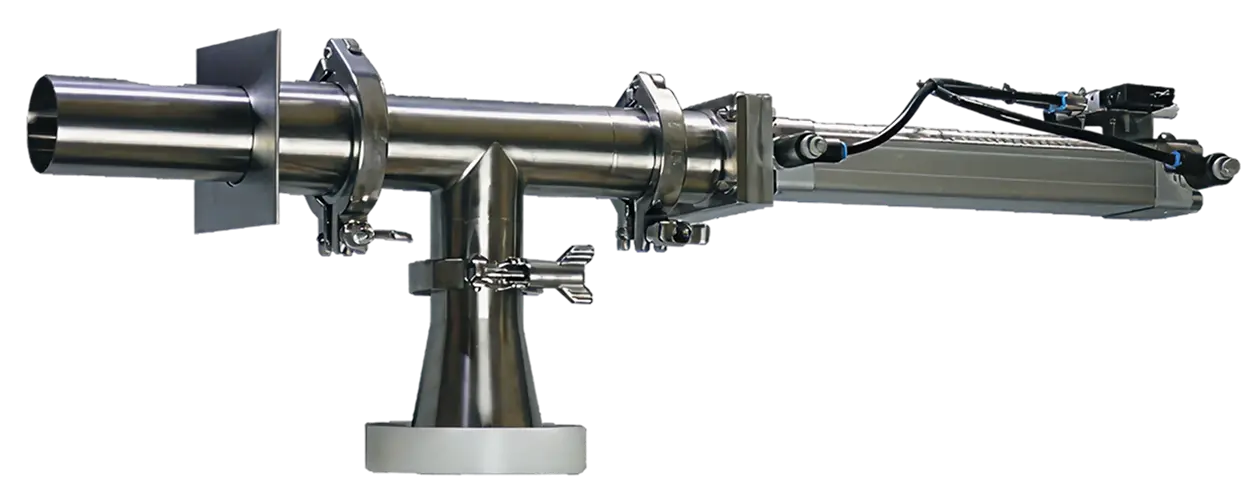

- OPT-Series has cylinder mounting for operation
- 50mm, 63mm or 75mm plug sizes
- Festor air cylinder or equivalent and control solenoid standard
OTP
MP
FAQ
OTP
01.
What is the OPT Series Powder Sampler best suited for?
The OPT Series is optimized for high-volume production environments requiring continuous sampling with
minimal operator intervention and maximum reliability.
02.
What is the OPT Series Powder Sampler best suited for?
Yes, the OPT Series is designed for integration with automated systems and can be customized to match
existing processing lines, including PLC integration for automated sampling control.
03.
What are the material options for the OPT Series?
The OPT Series is available in various materials including stainless steel grades (316L, 304), Hastelloy
for corrosive applications, and specialized coatings for specific product requirements.
04.
What safety or ATEX certifications does the OPT Series have?
The OPT Series can be supplied with ATEX certification for explosive atmospheres, IP65 rating for dust
protection, and meets various international safety standards including CE marking.
MP
01.
What is the MP Series Powder Sampler used for?
The MP Series Powder Sampler is designed for automated sampling of powdered materials in industrial
applications, providing consistent and representative samples for quality control and process
monitoring.
02.
What types of powders can the MP Series handle?
The MP Series can handle a wide range of powders including pharmaceutical ingredients, fine chemicals,
and food-grade powders. It is suitable for free-flowing and semi-free-flowing powders.
03.
Is the MP Series Powder Sampler GMP compliant?
Yes, the MP Series is designed to meet GMP (Good Manufacturing Practice) requirements with validated
cleaning procedures and documentation support for regulatory compliance.
04.
How is the MP Series cleaned and maintained?
The MP Series features easy disassembly for thorough cleaning, with smooth surfaces and minimal
crevices. Regular maintenance includes lubrication of moving parts and calibration checks.
